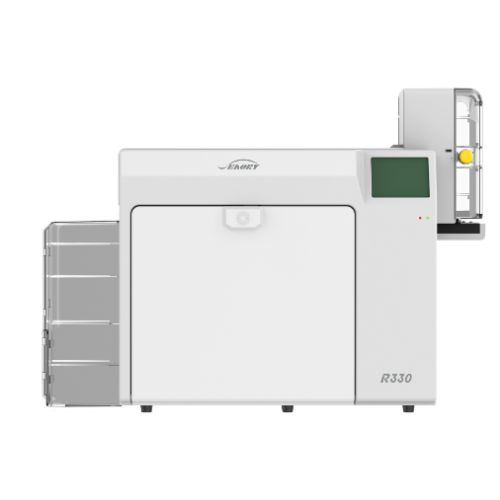

Seaory R330 Retransfer Duplex Card Printer

• Dye Sublimation retransfer card printer
• Default printing resolution 300 dpi × 300 dpi
• With 3.5-inch colour touch screen, 256MB memory
• Available to set the direction of output card input & output, dual-sided printing,
• Alarm for no card and defective card slot
• Body size: 568mm × 272mm × 398mm, N.W: 20.3 kg
• 12 month R Series warranty from date of purchase.

High-quality, High-efficiency:

• Monochrome printing:12-16s per card(single-sided), 30-34s per card(dual-sided),using ribbon saving technology
• Full-colour YMCK Printing：20s per card(single-sided),38s per card(dual-sided)
• Print dimension is ISO CR80(53.98mmx85.6mm) standard card
• Input hopper capacity is 200pcs cards(0.76mm)
• Output hopper capacity is 200pcs cards(0.76mm)
• Defective card slot capacity is 25pcs cards(0.76mm)
• Edge-to-edge printing of the entire card

Seaory R330 Retransfer Duplex Card Printer – Designed for large quantity & low cost printing:

• Monochrome ribbon: 100m×60mm
• Transparent retransfer film: 500 / 1000 prints/roll
• Security YMCFK ribbon: 500 prints/roll
• YMCKHs ribbon full panel: 500 prints/roll
• YMCKI ribbon full panel: 500 prints/roll
• YMCKK ribbon full panel: 500 prints/roll
• YMCK ribbon full panel : 500 / 1000 prints/roll

Variety of card encoding module:

• Magnetic stripe card encoding module: Support ISO7811 Hi-co/Low-co, support 1/2/3 tracks encoding
• UHF Chip card encoding module: Support EPC C1 GEN2/ ISO 18000 -6C Air interface protocol standard
• Contactless ID card encoding module : Support 125KHz (Specified chip type)
• Support contactless CPU card (ISO14443 TYPE A/B),PC/SC
• 4 SAM slots (same as SIM card size complied with GSM 11.11)
• Support CPU card (ISO 7816, T=1 & T=0)
• Dual interface chip card reading and writing module
